1997 CHEVROLET Suburban Serpentine Belt Diagram for V8 5.7 Liter Engine

Serpentine Belt Diagram for 1997 CHEVROLET Suburban

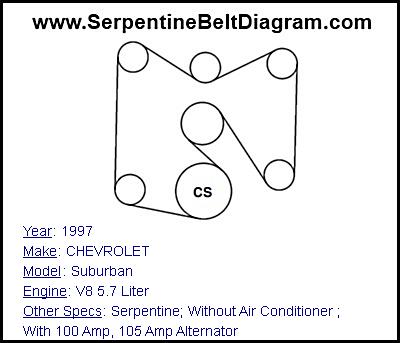

This CHEVROLET Suburban belt diagram is for model year 1997 with V8 5.7 Liter engine and Serpentine; Without Air Conditioner ; With 100 Amp, 105 Amp Alternator1997 CHEVROLET Suburban with V8 5.7 Liter Engine
