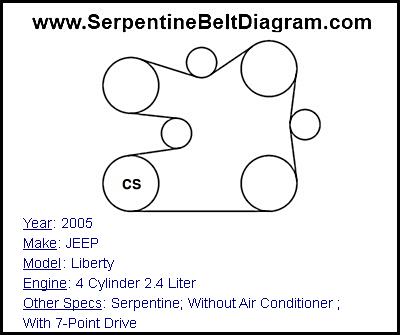

Serpentine Belt Diagram for 2005 JEEP Liberty
This JEEP Liberty belt diagram is for model year 2005 with 4 Cylinder 2.4 Liter engine and Serpentine; Without Air Conditioner ; With 7-Point Drive
Diagrams By Maker
2005 JEEP Liberty Serpentine Belt Diagram for 4 Cylinder 2.4 Liter Engine
Posted by admin on January 27, 2015
