2005 JEEP TJ Serpentine Belt Diagram for 4 Cylinder 2.4 Liter Engine (Canada)

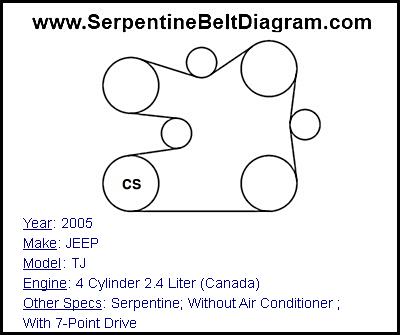

Serpentine Belt Diagram for 2005 JEEP TJ

This JEEP TJ belt diagram is for model year 2005 with 4 Cylinder 2.4 Liter (Canada) engine and Serpentine; Without Air Conditioner ; With 7-Point Drive2005 JEEP TJ with 4 Cylinder 2.4 Liter (Canada) Engine
